AAA Weapon Art Pipeline Creating the Low Poly

The low-poly stage is one of the first major optimization steps in the asset production pipeline. This is where we define the balance between polygon count, clean shading, UV splits, deformation requirements, and runtime performance.

One principle I have consistently observed in game production is that creating a low-poly asset is not only about fitting into a technical limit. The more important task is to distribute topology in an optimized and logical way.

A good low-poly mesh spends geometry where it actually matters: on the silhouette, functional shapes, close-up interaction zones, moving parts, and areas that affect shading. At the same time, it avoids wasting polygons on flat surfaces, hidden areas, repetitive details that can be baked, or parts that will rarely be seen by the player.

Before discussing topology optimization, it is important to understand why we cannot simply use high-density geometry, CAD output, or cinematic assets directly in a real-time VR project.

“Triangle count” has been used as a familiar performance metric since the early days of consumer 3D accelerators. For artists, it remains a convenient way to estimate and communicate geometry complexity. However, from a technical perspective, rendering cost starts not with triangles, but with vertices.

A real-time mesh is not just a collection of visible polygons. It contains several types of vertex data:

• Vertex position
• Vertex normal
• UV coordinates
• Tangent and bitangent data
• Vertex color
• Bone weights
• Material assignments
• UV splits and hard-normal splits

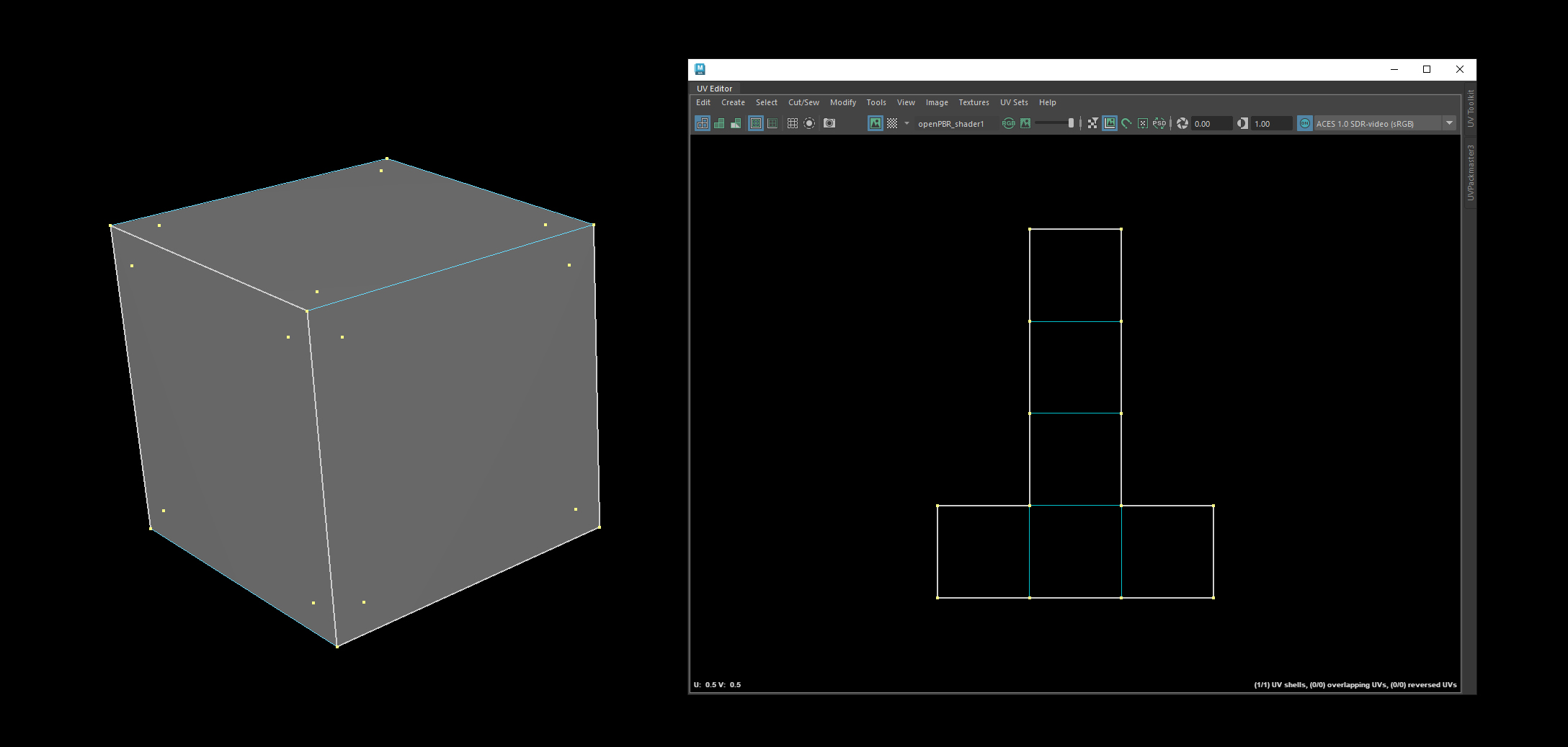

This means that the visible triangle count and the actual amount of processed vertex data are not always the same thing. UV seams, hard edges, material splits, and skinning data can all increase the final vertex count processed by the GPU.

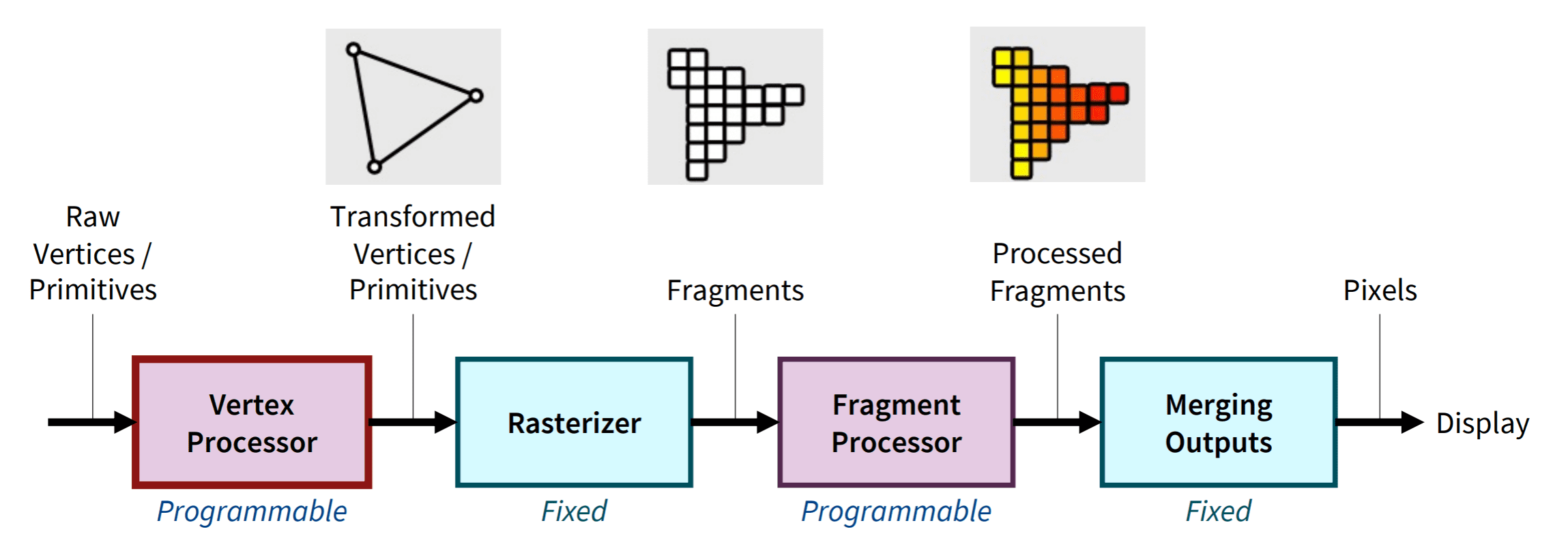

At runtime, mesh data is loaded, sent into GPU buffers, transformed, shaded, rasterized, and used in multiple rendering passes. Depending on the scene, the same geometry may also contribute to shadows, reflections, depth passes, motion vectors, or other rendering systems.

The cost becomes even more complex when dynamic lights, transparent materials, reflections, and post-processing are involved. Performance does not always scale linearly. A scene may appear stable with millions of polygons, but after adding one more asset, one more light source, or one more expensive material, the frame rate can suddenly become unstable.

A proper optimization strategy starts with understanding the target hardware.

Before defining the low-poly budget, the team needs to understand:

• Target platform
• Target frame rate
• Memory budget
• Most expensive expected frame
• Number of visible weapons, characters, props, vehicles, VFX, and environment assets
• Lighting and shadow complexity
• Post-processing cost
• Importance of the asset on screen

Only after this can the team define realistic limits for each asset category.

For Direct Action, we defined the average weapon budget at approximately 10,000-40,000 triangles per weapon. For exceptionally complex assets, such as machine guns or highly detailed systems with many visible mechanical parts, the budget can rise to 60,000-80,000 triangles.

This is a relatively high geometry budget, closer to what is often seen in AAA flatscreen productions. In our case, this decision was driven by the level of close-up detail we wanted players to experience in VR.

However, a higher polygon budget only works if the asset is structured correctly.

One of the key optimization strategies is to use static meshes wherever possible, instead of forcing the entire weapon into one fully skinned mesh.

For non-deforming parts, static meshes are often more efficient. A static mesh can use a single transform matrix for all of its vertices, while a skinned mesh requires additional per-vertex calculations for bone influence, deformation, and animation.

This means that rigid weapon parts do not always need to be skinned. In many cases, it is better to keep them as separate static components and reserve skeletal meshes only for elements that require complex animation.

For example:

• Simple rigid parts can remain static
• Moving mechanical groups can be attached as separate components
• Only deformation-heavy or animation-critical parts should use skeletal data
• Hidden or internal animation helpers can use very low-detail geometry

This approach helps reduce unnecessary vertex shader cost and avoids overloading both CPU and GPU with dynamic calculations where they are not needed.

However, this method also introduces trade-offs. A larger number of static mesh components can make the asset harder to manage, animate, and assemble. It may also increase draw calls if not handled carefully. Therefore, the goal is not to split everything into as many pieces as possible, but to find a practical balance between animation flexibility, rendering cost, and production manageability.

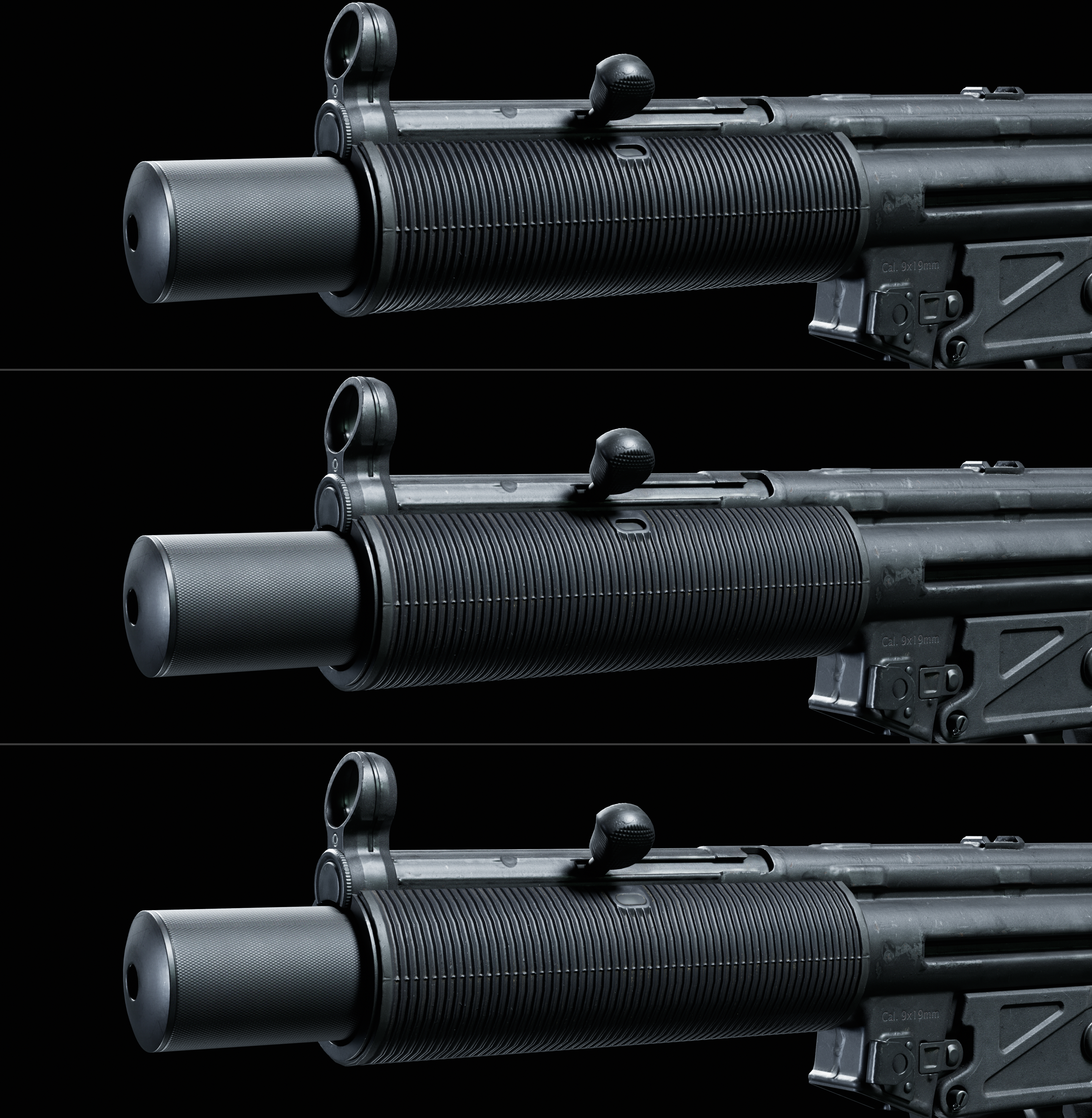

Another important part of low-poly preparation is controlling normal direction for aggressive LOD generation.

By assigning consistent or unified normal directions to selected polygon groups, we can make the asset more friendly to tangent-space normal maps and future LODs. This helps preserve stable shading when geometry is reduced.

In practice, this means the artist should think about shading not only for the final close-up mesh, but also for how the asset will degrade at distance or under performance constraints.

Clean normal direction can help:

• Reduce visible shading artifacts
• Make baked details more stable
• Improve LOD transitions
• Preserve the visual read of large forms
• Avoid noisy highlights on simplified geometry
• Make the asset easier to optimize later

For weapon art, this is especially important because reflections and highlights are perceived in stereo and in motion. Poor normal management can make a surface feel unstable, broken, or visually noisy when the player rotates the object in their hands.

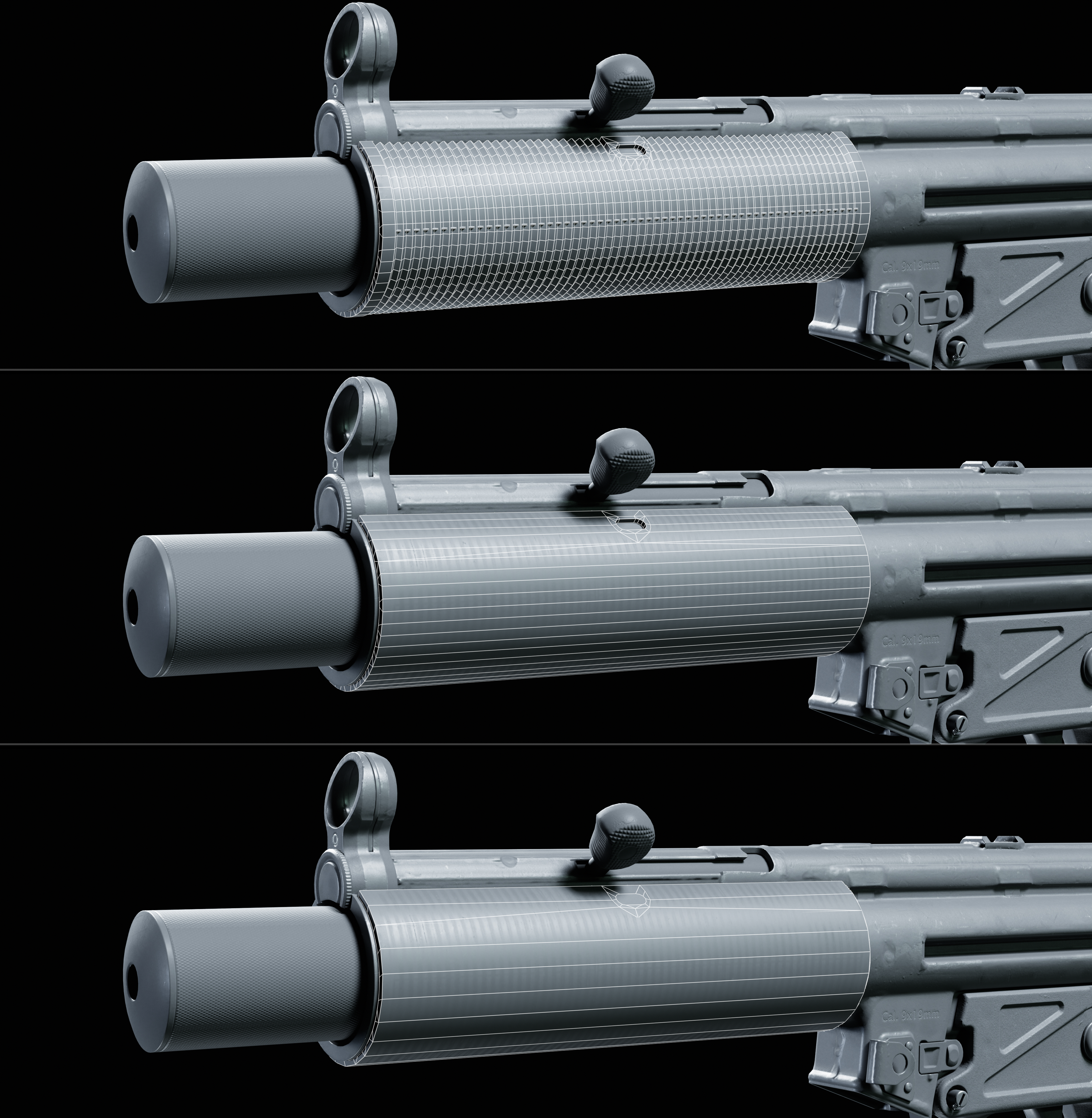

Normal Quad

↔

The low-poly stage is not simply about reducing triangles. It is about building a real-time version of the asset that keeps the artistic intent, preserves the silhouette, supports animation, works with the texture bake, and remains stable under the performance constraints.
